Sandvik Coromant

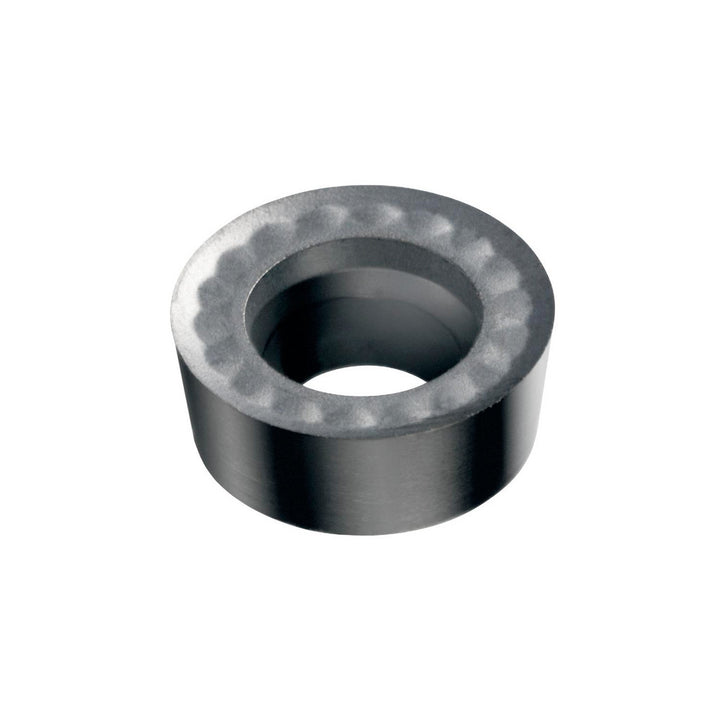

RCGX 08 03 M0-AL H10 Carbide Insert, Grade H10 - Sandvik Coromant 5740092
MFR# 5740092ISO/ANSI# RCGX 08 03 M0-AL H10Series CoroTurn 107
$11.75List $15.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeH10
MaterialCarbide
Description
The Sandvik Coromant 5740092 is a RCGX 08 03 M0-AL H10 carbide indexable insert, grade H10. Suited for non-ferrous metal.
Specifications
Chip breakerAL
Clearance codeC
Hole diameter0.1339
Inscribed circle0.3150
Insert handNeutral
Insert holding methodScrew
Insert length in1/8
Insert materialCarbide
Insert shapeRound
Insert size code0803
Insert styleRCGX
Insert thickness in1/8
Iso codeRCGX 08 03 M0-AL H10
Length range0.0000 - 0.3000
Manufacturer gradeH10
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
