Sandvik Coromant

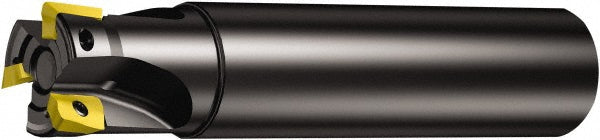

Indexable End Mills - Sandvik Coromant 5740101
MFR# 5740101Series CoroMill 390
$632.25List $660.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Sandvik Coromant 5740101 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter1-1/2
End mill typeRamping
Insert compatibilityR390-17..
Insert holding methodScrew
Iso numberRA390-038O32L-17M
Lead angle90
Maximum depth of cut0.6180
Maximum rpm9000
Number of cutter inserts3
Number of flutes3
Overall length in9
Shank diameter in1-1/4
Shank typeCylindrical
Tool materialSteel
