Sandvik Coromant

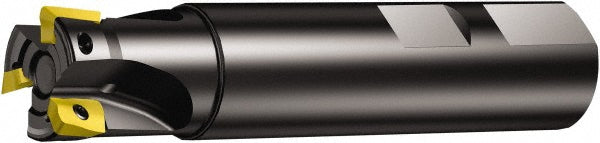

Indexable End Mills - Sandvik Coromant 5740135
MFR# 5740135Series CoroMill 390
$593.01List $630.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Sandvik Coromant 5740135 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter1-1/4
End mill typeRamping
Head length1.3500
Insert compatibilityR390-11..
Insert holding methodScrew
Iso numberRA390-032M32-11H
Lead angle90
Maximum depth of cut0.3940
Maximum rpm31200
Number of cutter inserts5
Number of flutes5
Overall length in3-3/4
Shank diameter in1-1/4
Shank length2.4010
Shank typeWeldon Flat
Tool materialSteel
