Sandvik Coromant

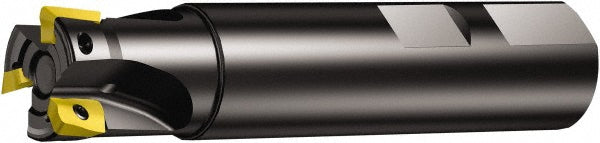

Indexable End Mills - Sandvik Coromant 5740189
MFR# 5740189Series CoroMill 390
$579.57List $605.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Sandvik Coromant 5740189 indexable end mills. Series CoroMill 390.
Specifications
Coolant throughYes
Cutter styleCoroMill® 390
Cutting diameter1-1/4
End mill typeRamping
Head length1.5800
Insert compatibilityR390-17..
Insert holding methodScrew
Iso numberRA390-032M32-17M
Lead angle90
Maximum depth of cut0.6180
Maximum rpm25700
Number of cutter inserts3
Number of flutes3
Overall length in4
Shank diameter in1-1/4
Shank length2.4210
Shank typeWeldon Flat
Tool materialSteel
