Sandvik Coromant

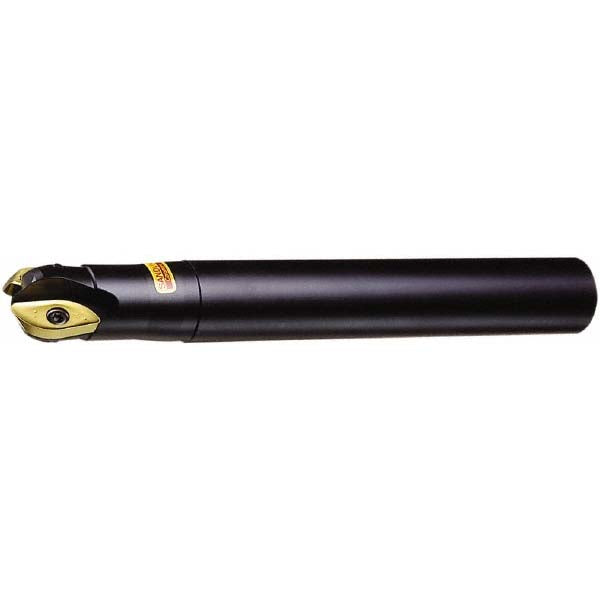

3/4" Indexable End Mills - Sandvik Coromant 5740202
MFR# 5740202Series CoroMill 216
$645.66List $674.00
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sandvik Coromant 5740202 indexable end mills. Series CoroMill 216.
Specifications
Compatible insert styleRA216-19T3
Coolant throughNo
Cutting diameter in3/4
Head length2.0000
Insert holding methodScrew
Maximum depth of cut0.6693
Maximum rpm24000
Number of ball nose inserts2
Number of flutes2
Overall length in10
Projection8.1260
Shank typeStraight
Toolholder styleRA216..Oxx
Tool materialSteel
Weldon flatNo
