Sandvik Coromant

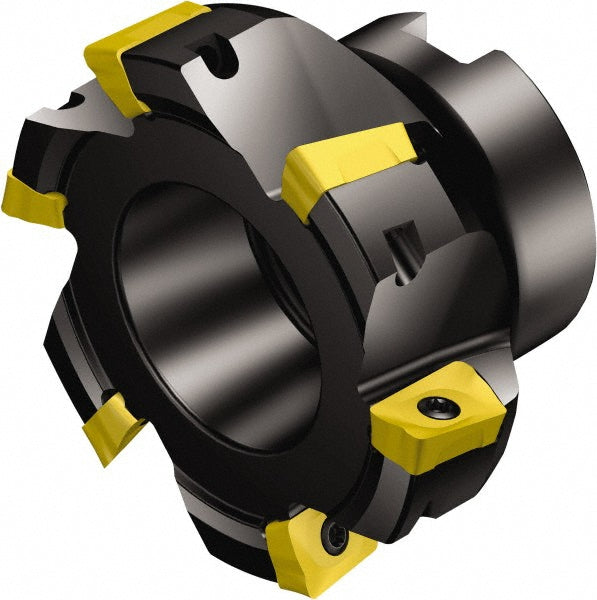

Indexable Milling Cutters - Sandvik Coromant 5740255
MFR# 5740255Series CoroMill 390
$1,163.44List $1,236.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Sandvik Coromant 5740255 indexable milling cutters. Series CoroMill 390.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeR390-17..
Complete insert compatibilityR390-17..
Coolant throughNo
Cutter styleRA390
Cutting directionRight Hand
Cutting edge length0.6181
Hub diameter in1-1/2
Insert holding methodClamp; Screw
Keyway width0.6331
Lead angle90
Maximum body diameter3.9370
Maximum cutting diameter in4
Maximum depth of cut0.6181
Number of cutter inserts7
Number of flutes7
Overall height1.9690
Pitch typeClose
RakePositive
Toolholder materialSteel
