Sandvik Coromant
Indexable Milling Cutters - Sandvik Coromant 5740378
MFR# 5740378Series CoroMill Century
$1,438.07List $1,501.20
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description

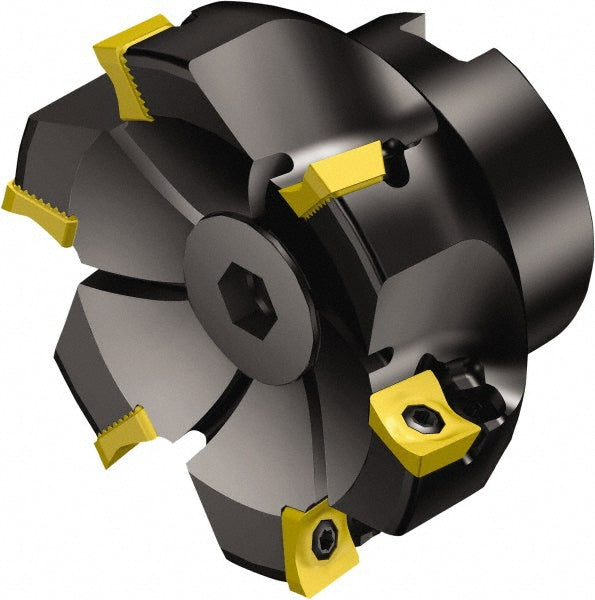

The Sandvik Coromant 5740378 indexable milling cutters. Series CoroMill Century.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeR590-1105..
Complete insert compatibilityR590-1105..
Coolant throughYes
Cutter styleRA590
Cutting directionRight Hand
Cutting edge length0.4331
Hub diameter in3/4
Insert holding methodClamp; Screw
Keyway width0.3839
Lead angle90
Maximum body diameter2.4685
Maximum cutting diameter in2-1/2
Maximum depth of cut0.4331
Number of cutter inserts5
Number of flutes5
Overall height1.5748
Pitch typeClose
RakePositive
Toolholder materialSteel
