Sandvik Coromant

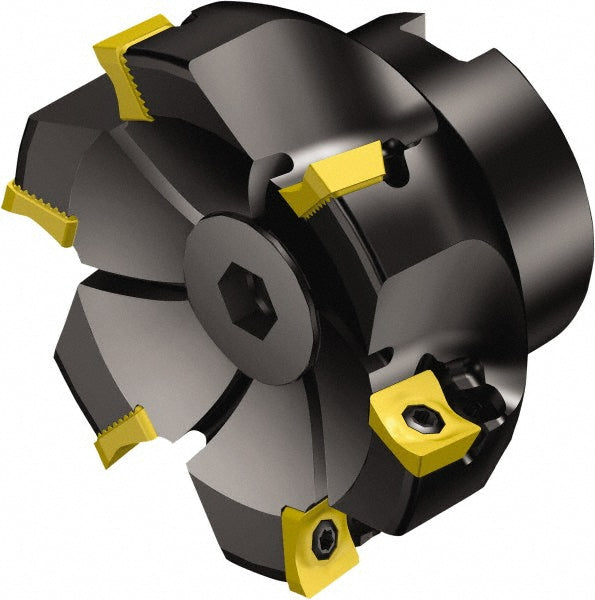

Indexable Milling Cutters - Sandvik Coromant 5740381
MFR# 5740381Series CoroMill Century
$2,769.10List $2,890.65
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description
The Sandvik Coromant 5740381 indexable milling cutters. Series CoroMill Century.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeR590-1105..
Complete insert compatibilityR590-1105..
Coolant throughYes
Cutter styleRA590
Cutting directionRight Hand
Cutting edge length0.4331
Hub diameter in1-1/2
Insert holding methodClamp; Screw
Lead angle90
Maximum body diameter4.9685
Maximum cutting diameter in5
Maximum depth of cut0.4331
Number of cutter inserts8
Number of flutes8
Overall height2.4803
Pitch typeClose
RakePositive
Toolholder materialSteel
