Sandvik Coromant

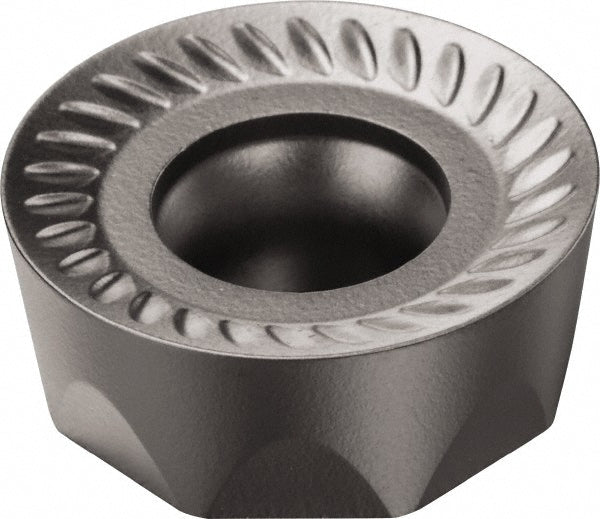

RCKT 13 04 00-WM H10F Solid Carbide Insert, Grade H10F - Sandvik Coromant 5740406
MFR# 5740406ISO/ANSI# RCKT 13 04 00-WM H10FCat# RCKT 13 04 00-WM H10FSeries RCKT
$16.99List $21.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeH10F
MaterialSolid Carbide
Description
The Sandvik Coromant 5740406 is a RCKT 13 04 00-WM H10F solid carbide indexable insert, grade H10F. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi codeRCKT 13 04 00-WM H10F
Chip breakerWM
Coating processUncoated
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCKT
Iso codeRCKT 13 04 00-WM H10F
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCKT 13 04 00-WM H10F
Manufacturer gradeH10F
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeN15
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
