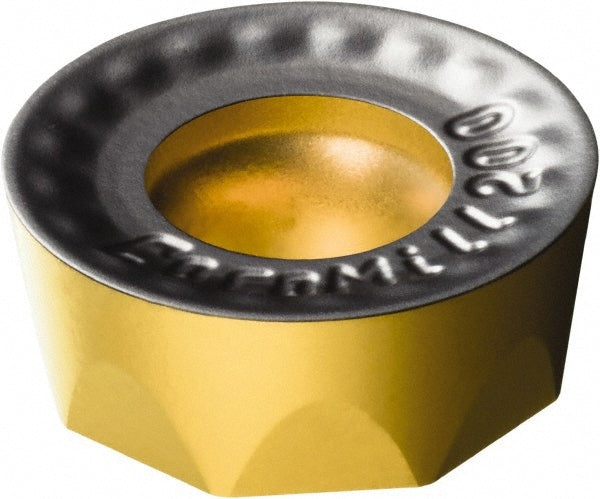

RCKT 13 04 00-PH 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5740414
MFR# 5740414ISO/ANSI# RCKT 13 04 00-PH 4220Cat# RCKT 13 04 00-PH 4220Series RCKT
$21.26List $26.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade4220
MaterialSolid Carbide
CoatingTiCN
Description
The Sandvik Coromant 5740414 is a RCKT 13 04 00-PH 4220 solid carbide indexable insert, grade 4220, TiCN coated. Suited for steel, cast iron, hard material.
Specifications
Ansi codeRCKT 13 04 00-PH 4220
Chip breakerPH
Coating finishTiCN
Coating processCVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCKT
Iso codeRCKT 13 04 00-PH 4220
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCKT 13 04 00-PH 4220
Manufacturer grade4220
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; H25
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
