Sandvik Coromant

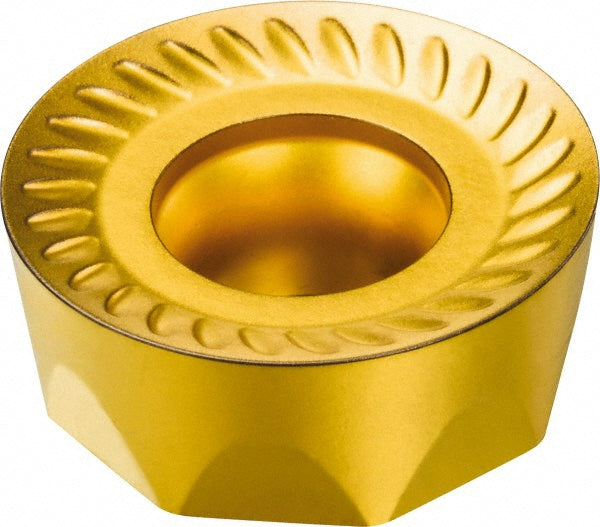

RCKT 19 06 00-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5740497
MFR# 5740497ISO/ANSI# RCKT 19 06 00-MM 2040Cat# RCKT 19 06 00-MM 2040Series RCKT
$33.45List $42.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeRound
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5740497 is a RCKT 19 06 00-MM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeRCKT 19 06 00-MM 2040
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Convex radius0.3750
Corner radius in3/8
Cutter series compatibilityRA200
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle in3/4
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size19
Insert size code190600
Insert styleRCKT
Iso codeRCKT 19 06 00-MM 2040
Length in3/4
Length range0.7000 to 0.9000
Manufacturers catalog numberRCKT 19 06 00-MM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.1098
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in3/4
