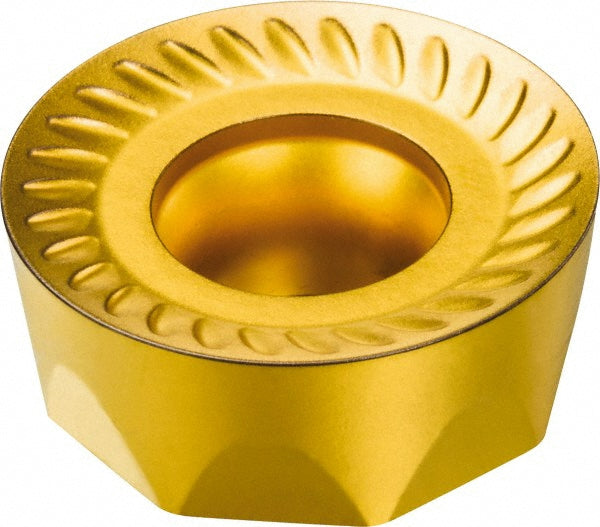

RCKT 20 06 M0-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5740537

Sandvik Coromant

RCKT 20 06 M0-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5740537

MFR# 5740537ISO/ANSI# RCKT 20 06 M0-MM 2040Cat# RCKT 20 06 M0-MM 2040Series RCKT

$34.39List $43.34 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5740537 is a RCKT 20 06 M0-MM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRCKT 20 06 M0-MM 2040
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Convex radius0.3937
Corner radius0.3937
Cutter series compatibilitySRSC; SRDC
Cutting edge styleRounded
Hole diameter0.2559
Included angle degree360
Inscribed circle0.7874
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size20
Insert size code2006M0
Insert styleRCKT
Iso codeRCKT 20 06 M0-MM 2040
Length0.7874
Length range0.7000 to 0.9000
Manufacturers catalog numberRCKT 20 06 M0-MM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.1154
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.7874
