Sandvik Coromant

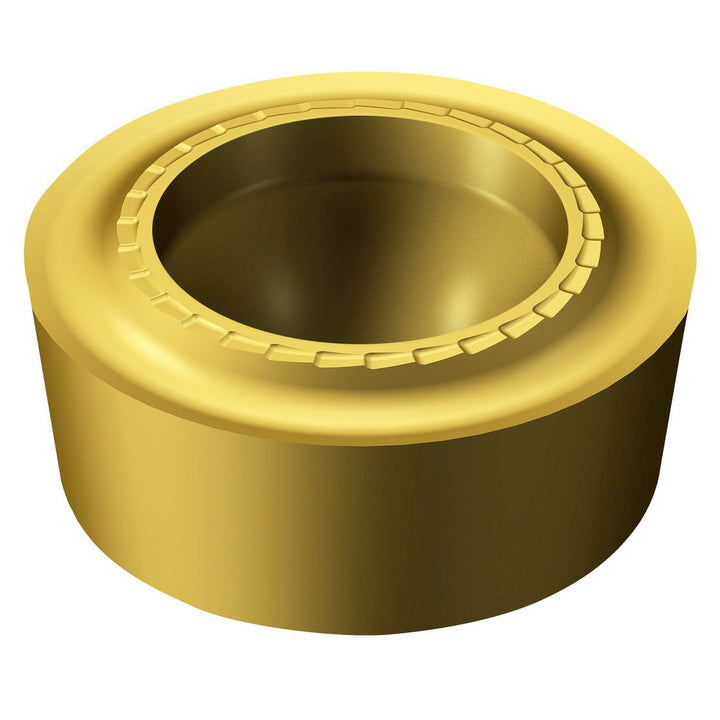

RCMT 12 04 00-SM S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5740553
MFR# 5740553ISO/ANSI# RCMT 12 04 00-SM S05FSeries CoroTurn 107
$21.86List $27.55
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740553 is a RCMT 12 04 00-SM S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1732
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 00-SM S05F
Length range0.0000 - 0.3000
Manufacturer gradeS05F
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
Wiper edgeNo
