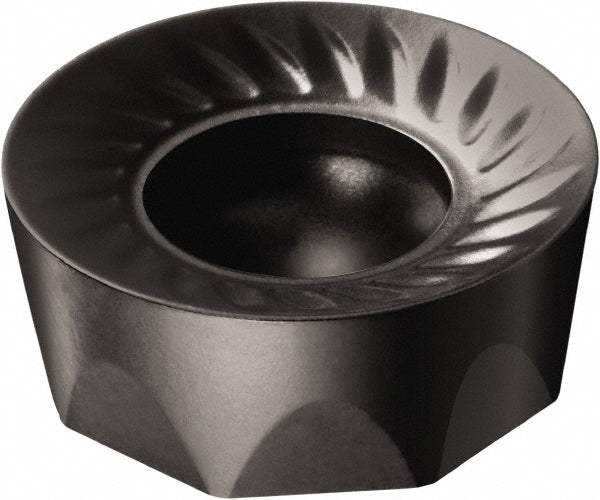

RCKT 13 04 00-KM 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5740558

Sandvik Coromant

RCKT 13 04 00-KM 3040 Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5740558

MFR# 5740558ISO/ANSI# RCKT 13 04 00-KM 3040Cat# RCKT 13 04 00-KM 3040Series RCKT

$17.93List $23.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeRound
Grade3040
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5740558 is a RCKT 13 04 00-KM 3040 solid carbide indexable insert, grade 3040, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeRCKT 13 04 00-KM 3040
Chip breakerKM
Coating finishTiCN
Coating processCVD
Convex radius0.2500
Corner radius in1/4
Cutter series compatibilityN331.32; R331.32; RA200
Cutting edge styleRounded
Hole diameter0.1575
Included angle degree360
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size13
Insert size code130400
Insert styleRCKT
Iso codeRCKT 13 04 00-KM 3040
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberRCKT 13 04 00-KM 3040
Manufacturer grade3040
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; K30; H25
Maximum depth of cut0.0732
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
