Sandvik Coromant

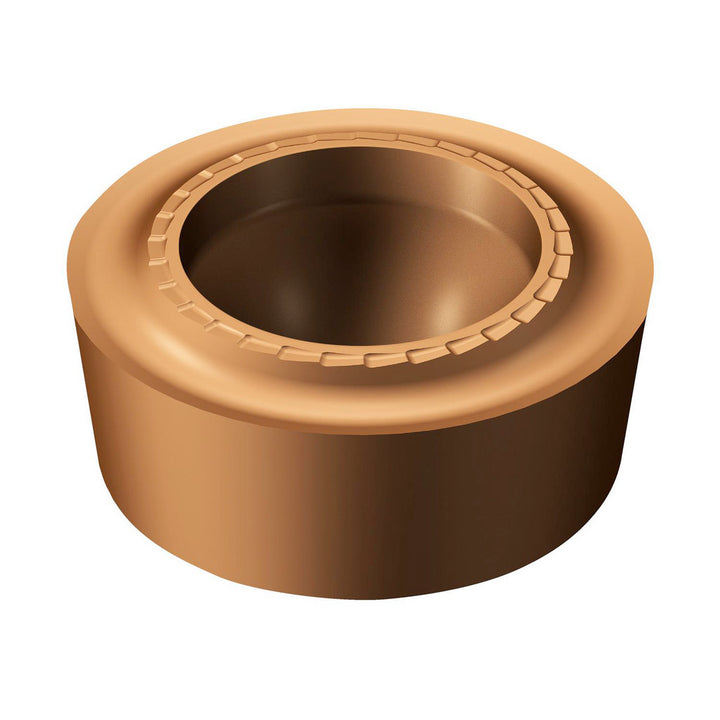

RCMT 12 04 00-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5740560
MFR# 5740560ISO/ANSI# RCMT 12 04 00-SM 1125Series CoroTurn 107
$18.52List $23.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5740560 is a RCMT 12 04 00-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Hole diameter0.1732
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code43
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 00-SM 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
