Sandvik Coromant

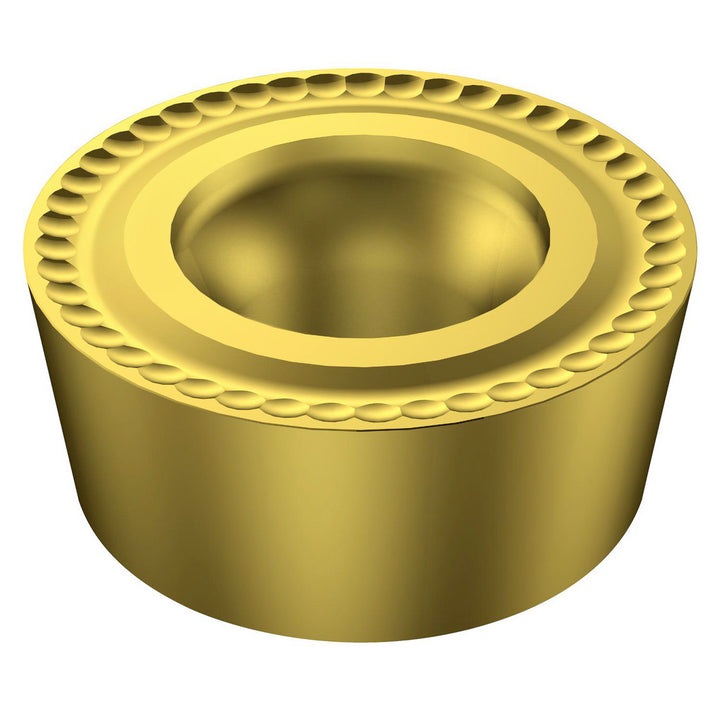

RCMT 05 02 M0 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5740628
MFR# 5740628ISO/ANSI# RCMT 05 02 M0 2025Cat# RCMT 05 02 M0 2025Series CoroTurn 107
$12.22List $15.66
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740628 is a RCMT 05 02 M0 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Full radiusYes
Hole diameter0.0937
Inscribed circle0.1969
Insert handNeutral
Insert holding methodScrew
Insert length in3/32
Insert materialCarbide
Insert shapeRound
Insert size code0502
Insert styleRCMT
Insert thickness in3/32
Iso codeRCMT 05 02 M0 2025
Manufacturers catalog numberRCMT 05 02 M0 2025
Manufacturer grade2025
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
