Sandvik Coromant

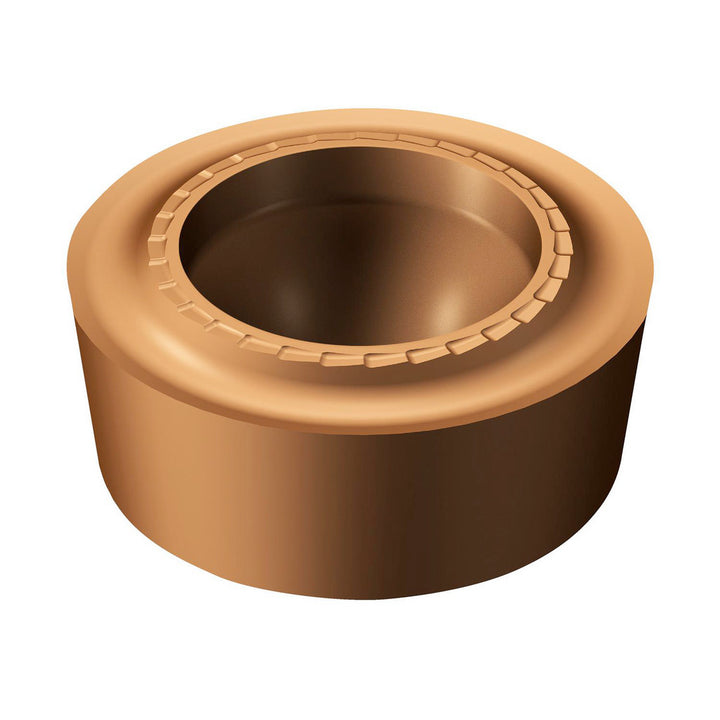

RCMT060300SM1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5740640
MFR# 5740640ISO/ANSI# RCMT060300SM1115Series CoroTurn 107
$11.81List $15.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRound
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5740640 is a RCMT060300SM1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Hole diameter0.1102
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeRound
Insert size code22
Insert styleRCMT
Insert thickness in1/8
Iso codeRCMT060300SM1115
Manufacturers catalog number5740640
Manufacturer grade1115
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
