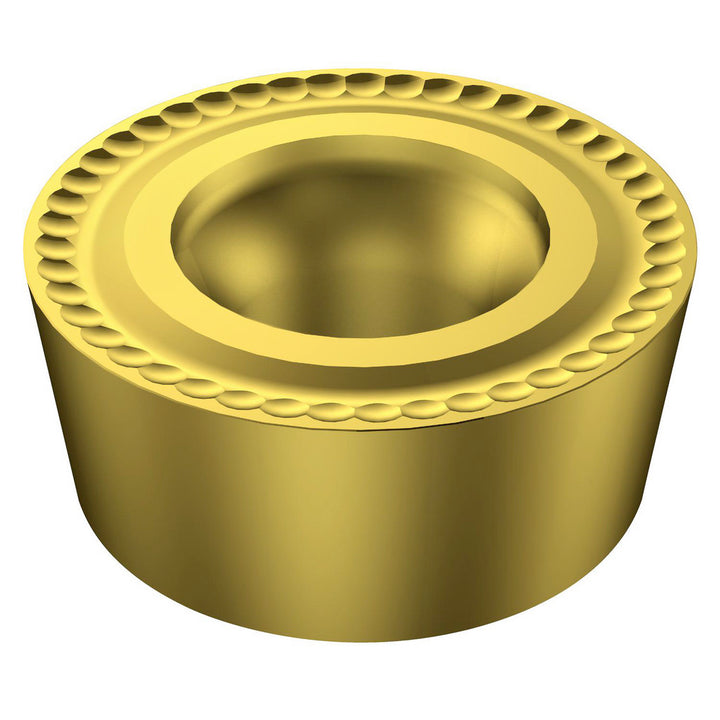

RCMT 06 02 M0 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740651

Sandvik Coromant

RCMT 06 02 M0 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740651

MFR# 5740651ISO/ANSI# RCMT 06 02 M0 235Cat# RCMT 06 02 M0 235Series RCMT

$11.58List $14.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5740651 is a RCMT 06 02 M0 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeRCMT 06 02 M0 235
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Convex radius0.1181
Corner radius0.1181
Cutter series compatibilitySRSC; SRDC
Cutting edge styleRounded
Hole diameter0.1102
Included angle degree360
Inscribed circle0.2362
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size06
Insert size code0602M0
Insert styleRCMT
Iso codeRCMT 06 02 M0 235
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog numberRCMT 06 02 M0 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.1181
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7.00
Secondary workpiece materialStainless Steel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width0.2362
