Sandvik Coromant

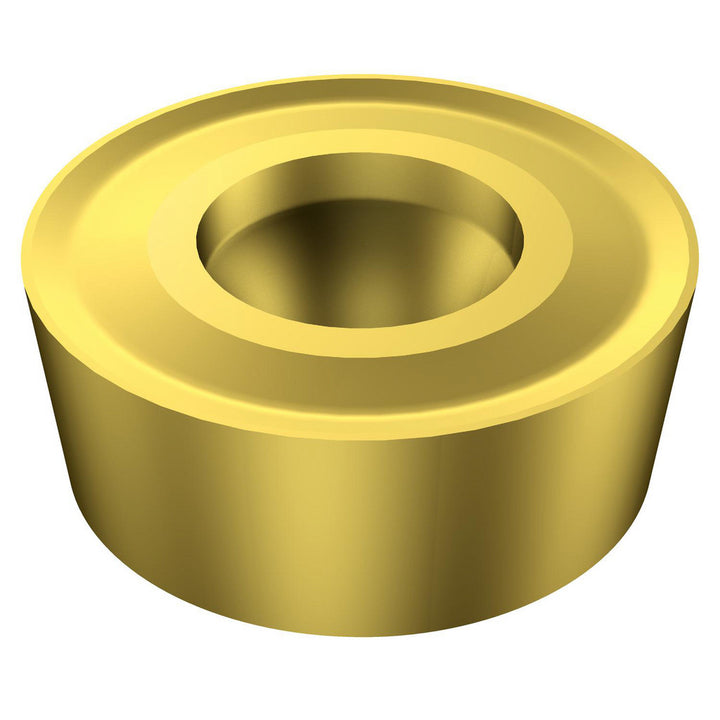

RCMT 09 T3 00 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740656
MFR# 5740656ISO/ANSI# RCMT 09 T3 00 235Cat# RCMT 09 T3 00 235Series CoroTurn 107
$15.27List $19.25
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740656 is a RCMT 09 T3 00 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breaker00
Clearance codeC
Coating finishTiCN
Coating processCVD
Full radiusYes
Hole diameter0.1563
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in5/32
Insert materialCarbide
Insert shapeRound
Insert size code32.5
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT 09 T3 00 235
Manufacturers catalog numberRCMT 09 T3 00 235
Manufacturer grade235
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
