Sandvik Coromant

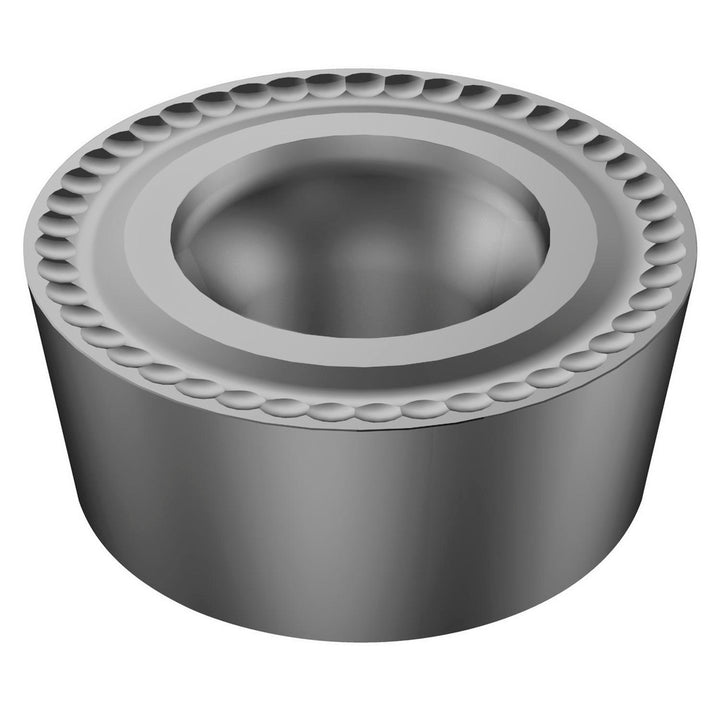

RCMT 06 02 M0 H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740693
MFR# 5740693ISO/ANSI# RCMT 06 02 M0 H13ASeries CoroTurn 107
$9.22List $11.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5740693 is a RCMT 06 02 M0 H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Hole diameter0.1102
Inscribed circle0.2362
Insert handNeutral
Insert holding methodScrew
Insert length in3/32
Insert materialCarbide
Insert shapeRound
Insert size code0602
Insert styleRCMT
Insert thickness in3/32
Iso codeRCMT 06 02 M0 H13A
Length range0.0000 - 0.3000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
