Sandvik Coromant

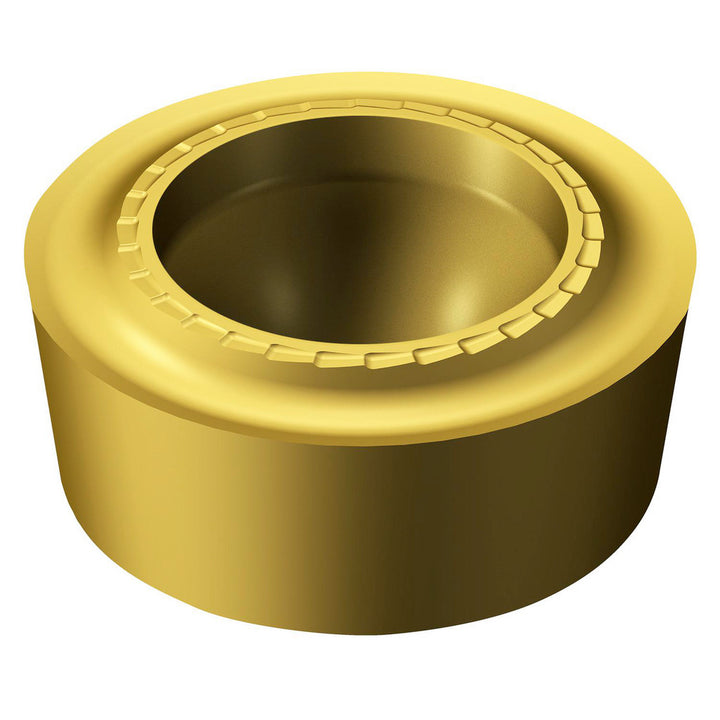

RCMT 09 T3 00-SM S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5740705
MFR# 5740705ISO/ANSI# RCMT 09 T3 00-SM S05FCat# RCMT 09 T3 00-SM S05FSeries CoroTurn 107
$14.43List $18.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeRound
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740705 is a RCMT 09 T3 00-SM S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Full radiusYes
Hole diameter0.1563
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in5/32
Insert materialCarbide
Insert shapeRound
Insert size code32.5
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT 09 T3 00-SM S05F
Manufacturers catalog numberRCMT 09 T3 00-SM S05F
Manufacturer gradeS05F
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
Wiper edgeNo
