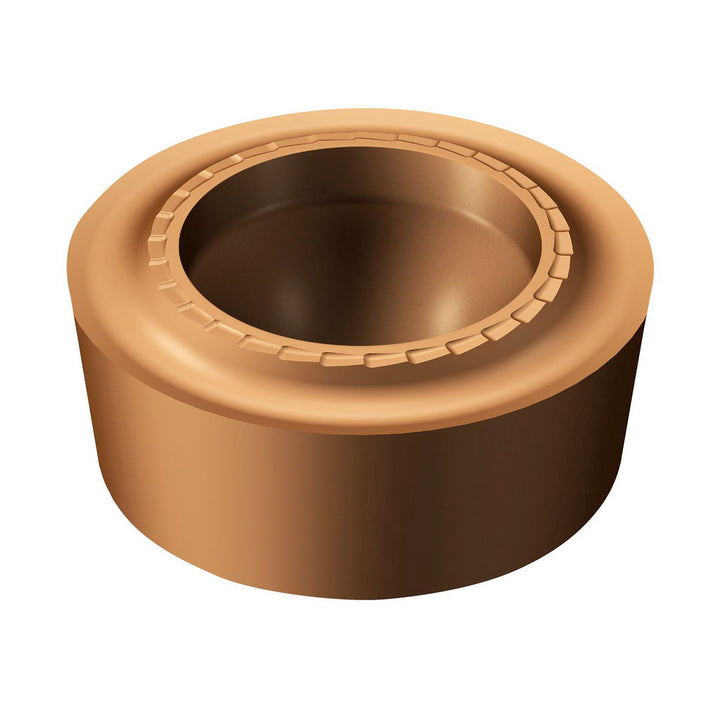

RCMT 09 T3 00-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5740711

Sandvik Coromant

RCMT 09 T3 00-SM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5740711

MFR# 5740711ISO/ANSI# RCMT 09 T3 00-SM 1125Series CoroTurn 107

$15.17List $19.12 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeRound
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5740711 is a RCMT 09 T3 00-SM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerSM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Hole diameter0.1575
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in5/32
Insert materialCarbide
Insert shapeRound
Insert size code32.50
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT 09 T3 00-SM 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
