Sandvik Coromant

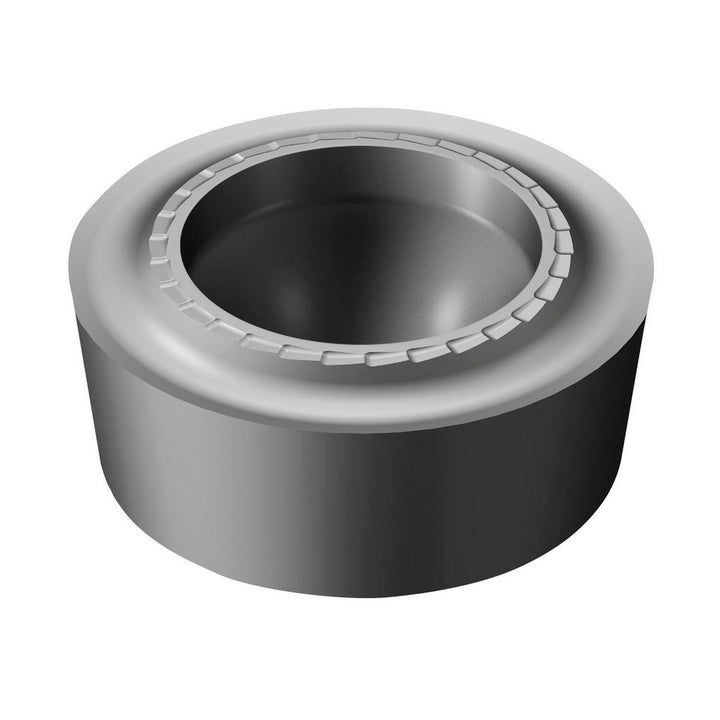

RCMT 16 06 M0-SM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740724
MFR# 5740724ISO/ANSI# RCMT1606M0Cat# RCMT 16 06 M0-SM H13ASeries CoroTurn 107
$23.01List $29.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeR - Round
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5740724 is a RCMT 16 06 M0-SM H13A carbide indexable insert, grade H13A. Suited for stainless steel.
Specifications
Ansi insert codeRCMT1606M0
Ansi size code1606M0
Chip breakerSM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Full radiusYes
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and T
Hole diameter0.2500
Inscribed circle0.6299
Insert handNeutral
Insert holding methodScrew
Insert length in1/4
Insert materialCarbide
Insert shapeR - Round
Insert size code1606
Insert styleRCMT
Insert thickness in1/4
Iso codeRCMT 16 06 M0-SM H13A
Iso insert codeRCMT1606M0
Iso size code1606M0
Manufacturers catalog numberRCMT 16 06 M0-SM H13A
Manufacturer gradeH13A
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeNo
