Sandvik Coromant

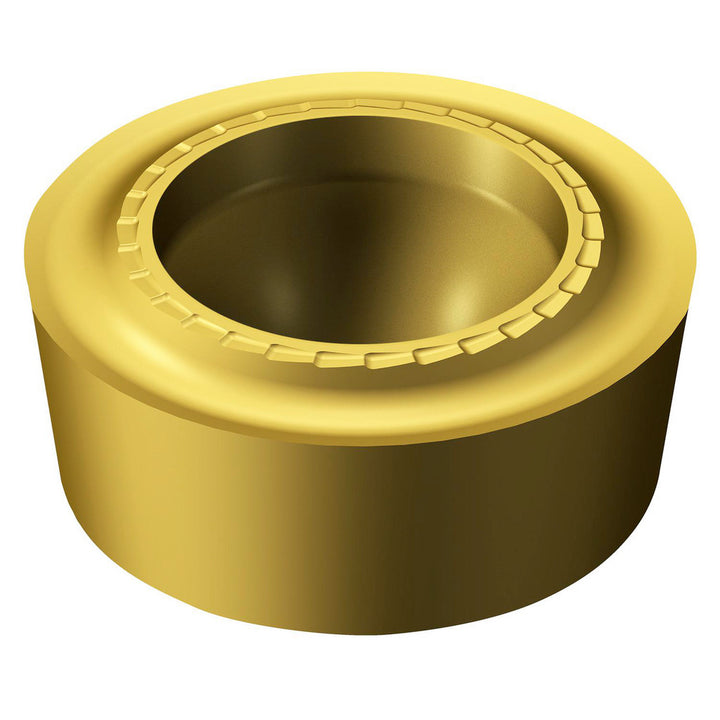

RCMT 12 04 M0-SM S05F Carbide Insert, Grade S05F, TiCN - Sandvik Coromant 5740727
MFR# 5740727ISO/ANSI# RCMT 12 04 M0-SM S05FSeries CoroTurn 107
$19.37List $24.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeS05F
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740727 is a RCMT 12 04 M0-SM S05F carbide indexable insert, grade S05F, TiCN coated. Suited for superalloy, titanium.
Specifications
Chip breakerSM
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.1732
Inscribed circle0.4724
Insert handNeutral
Insert holding methodScrew
Insert length in3/16
Insert materialCarbide
Insert shapeRound
Insert size code1204
Insert styleRCMT
Insert thickness in3/16
Iso codeRCMT 12 04 M0-SM S05F
Length range0.0000 - 0.3000
Manufacturer gradeS05F
Number of cutting edges4
Primary workpiece materialSuperalloy; Titanium
Relief angle7
Tolerance codeM
Wiper edgeNo
