Sandvik Coromant
RCMT 25 07 M0 235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5740772
MFR# 5740772ISO/ANSI# RCMT 25 07 M0 235Series CoroTurn 107
$82.52List $104.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
Grade235
MaterialCarbide
CoatingTiCN
Description

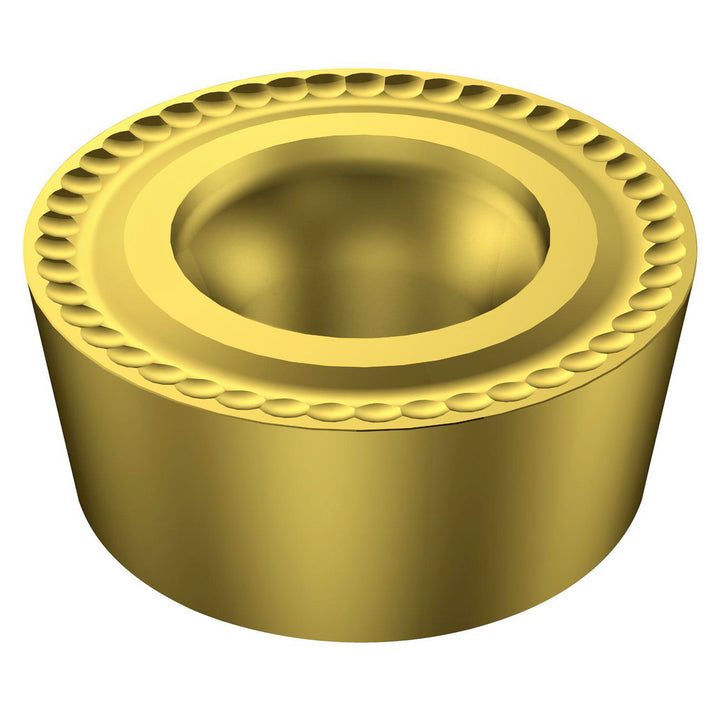

The Sandvik Coromant 5740772 is a RCMT 25 07 M0 235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Chip breakerM0
Clearance codeC
Coating finishTiCN
Coating processCVD
Hole diameter0.2992
Inscribed circle0.9843
Insert handNeutral
Insert holding methodScrew
Insert length in5/16
Insert materialCarbide
Insert shapeRound
Insert size code2507
Insert styleRCMT
Insert thickness in5/16
Iso codeRCMT 25 07 M0 235
Length range0.3000 - 0.4000
Manufacturer grade235
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
