Sandvik Coromant

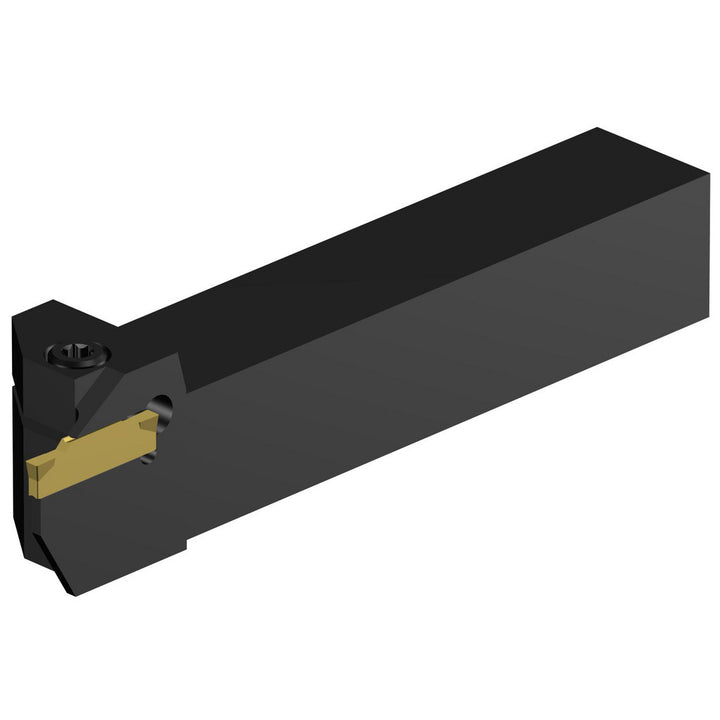

Indexable Grooving - Sandvik Coromant 5740816
MFR# 5740816Cat# RF123E032-12BSeries CoroCut 1-2
$265.89
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740816 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge4.5000
Compatible insert size codeN123E2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height0.7500
Head length0.7500
Insert compatibilityN123E2-0200-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123E032-12B
Maximum depth of cut0.3200
Maximum groove width (mm)2.39
Maximum overhang in1.0040
Minimum groove width0.0728
Overall length (mm)114.30
Shank height in3/4
Shank length3.4960
Shank width diameter in3/4
Toolholder styleRF123..B
