Sandvik Coromant

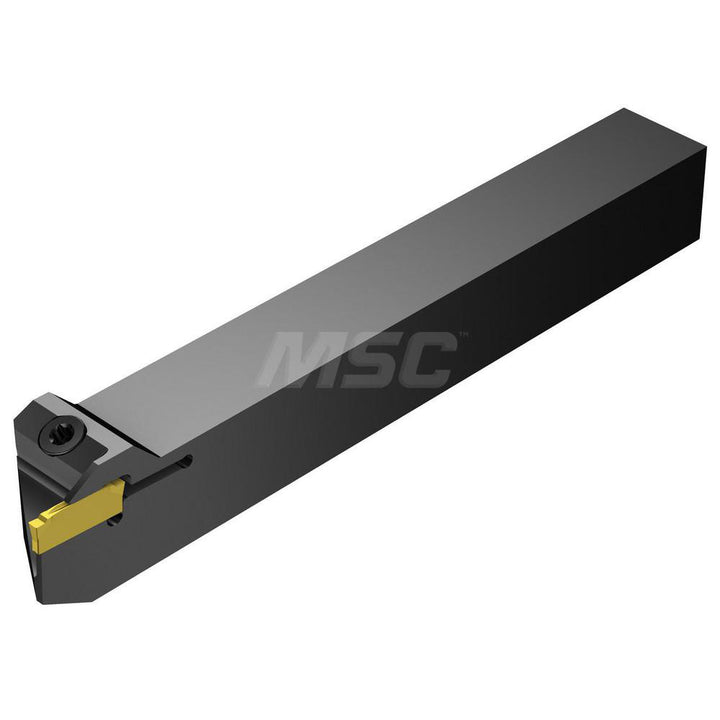

Indexable Grooving - Sandvik Coromant 5740828
MFR# 5740828Cat# RF123E043-08B-SSeries CoroCut 1-2
$230.38List $243.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740828 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeN123E2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height0.5000
Head length0.5000
Insert compatibilityN123E2-0200-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123E043-08B-S
Maximum depth of cut0.4300
Maximum groove width (mm)2.39
Maximum overhang in0.8866
Minimum groove width0.0728
Overall length (mm)127.00
Shank height in1/2
Shank length4.1133
Shank width diameter in1/2
Toolholder styleRF123..B-S
