Sandvik Coromant
Indexable Grooving - Sandvik Coromant 5740830
MFR# 5740830Series Coro Cut 1-2
$207.39List $220.32
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

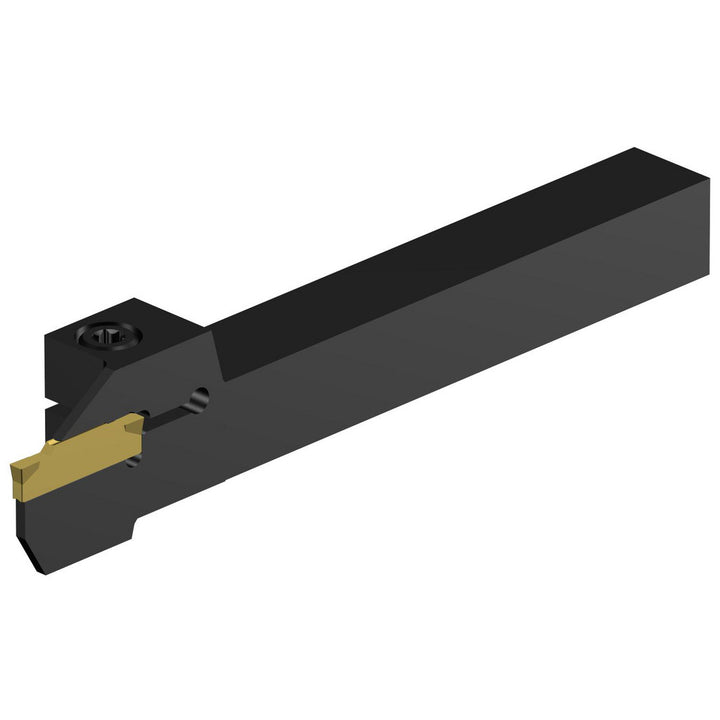

The Sandvik Coromant 5740830 indexable grooving. Series Coro Cut 1-2.
Specifications
Back of bar to cutting edge4.5000
Compatible insert size codeN123E2
Complete insert compatibilityN123E2 0200-0002-CM
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Insert compatibilityN123E2-0200-0002-CM
Insert holding methodClamp
Insert seat sizeE
Internal or externalInternal or External
Manufacturers catalog number5740830
Maximum depth of cut0.5900
Maximum overhang in1.3190
Multi use toolYes
Overall length in4-1/2
Shank diameter0.5000
Shank height0.5000
Shank width0.5000
Toolholder materialSteel
Toolholder styleF123
Toolholder typeNon-Face Grooving
