Sandvik Coromant

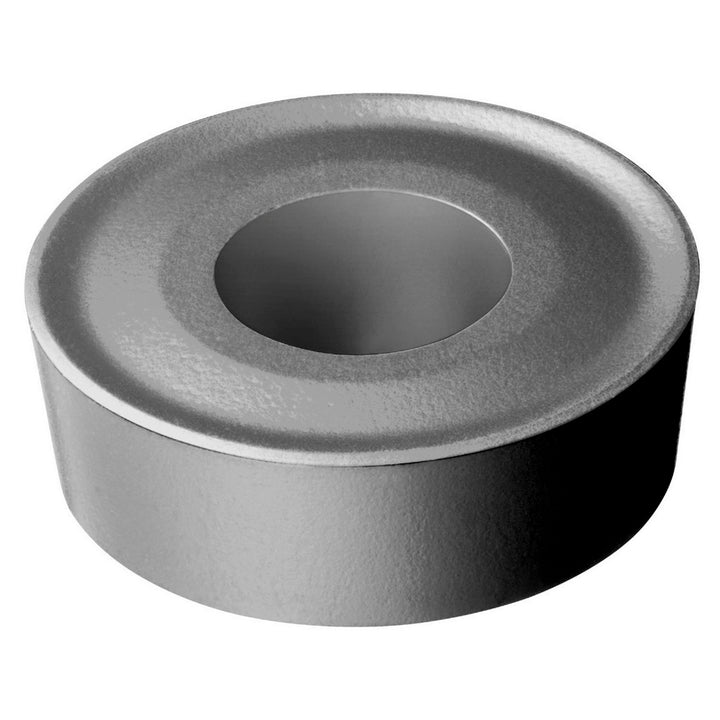

RCMX160600H13A Carbide Insert, Grade H13A - Sandvik Coromant 5740835
MFR# 5740835ISO/ANSI# RCMX160600H13ASeries T-Max P
$24.98List $31.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeRound
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5740835 is a RCMX160600H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breaker00
Clearance codeC
Hole diameter0.2047
Inscribed circle in5/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeRound
Insert size code1606
Insert styleRCMX
Insert thickness in1/4
Iso codeRCMX160600H13A
Manufacturers catalog number5740835
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
