Sandvik Coromant

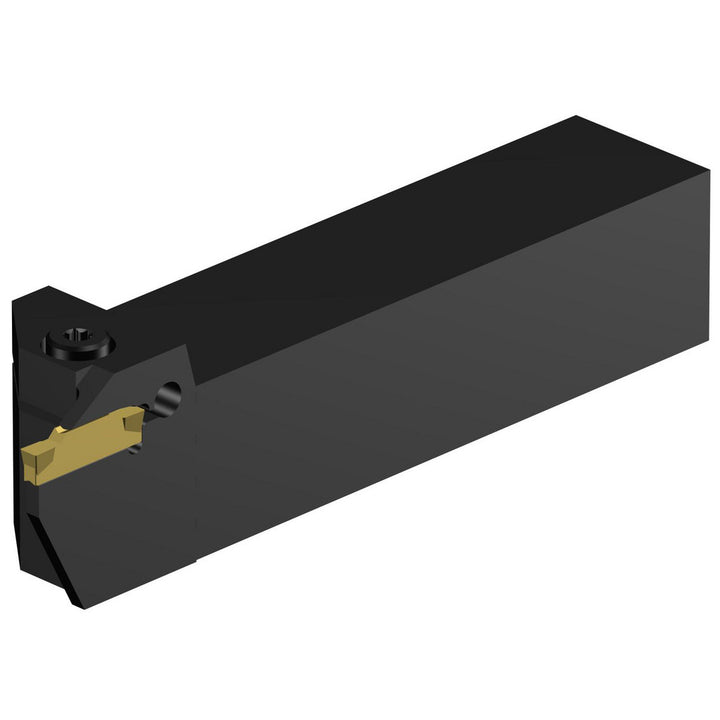

Indexable Grooving - Sandvik Coromant 5740838
MFR# 5740838Cat# RF123G040-16BSeries CoroCut 1-2
$282.44List $294.84
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740838 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeN123G2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height1.0000
Head length1.0000
Insert compatibilityN123G2-0300-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123G040-16B
Maximum depth of cut0.4000
Maximum groove width (mm)4.00
Maximum overhang in1.1810
Minimum groove width0.1181
Overall length (mm)127.00
Shank height in1
Shank length3.8190
Shank width diameter in1
Toolholder styleRF123..B
