Sandvik Coromant

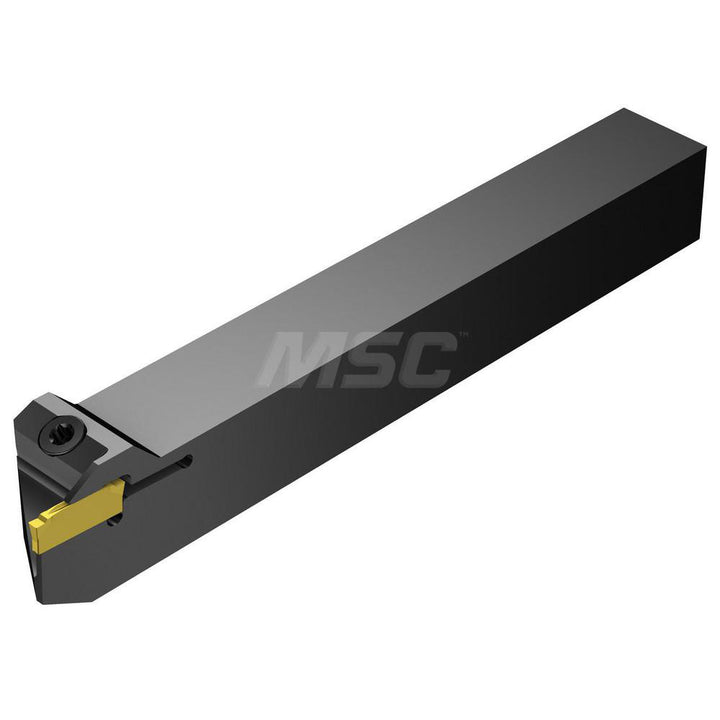

Indexable Grooving - Sandvik Coromant 5740859
MFR# 5740859Cat# RF123F17-1616B-SSeries CoroCut 1-2
$254.51List $265.68
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740859 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge4.9213
Compatible insert size codeN123F2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height0.6299
Head length0.6299
Insert compatibilityN123F2-0250-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123F17-1616B-S
Maximum depth of cut0.6693
Maximum groove width0.1250
Maximum overhang in1.1259
Minimum groove width0.0941
Overall length4.9213
Shank height0.6299
Shank length3.7953
Shank width diameter0.6299
Toolholder styleRF123..B-S
