Sandvik Coromant

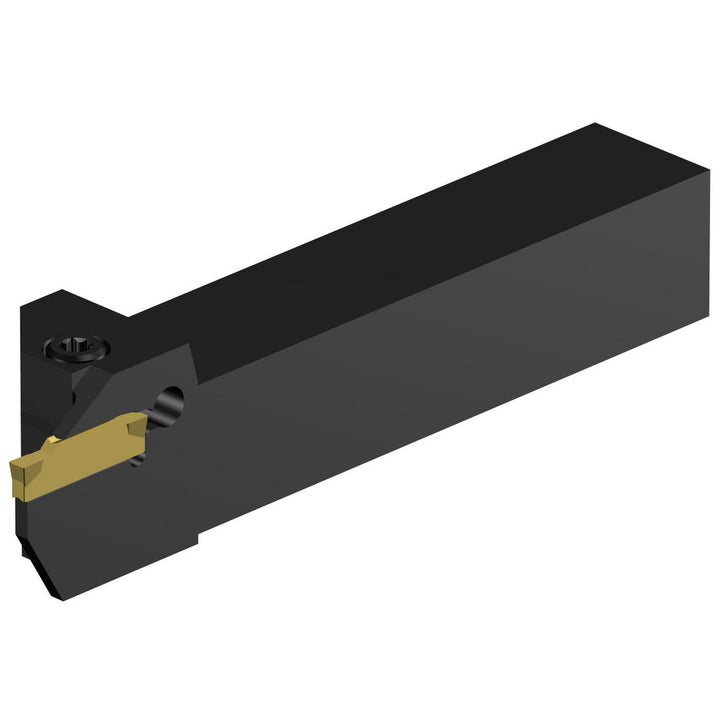

Indexable Grooving - Sandvik Coromant 5740879
MFR# 5740879Cat# RF123F040-12BSeries CoroCut 1-2
$238.90List $253.80
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740879 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge4.5000
Compatible insert size codeN123F2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height0.7500
Head length0.7500
Insert compatibilityN123F2-0250-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123F040-12B
Maximum depth of cut0.4000
Maximum groove width0.1250
Maximum overhang in1.1420
Minimum groove width0.0941
Overall length (mm)114.30
Shank height in3/4
Shank length3.3580
Shank width diameter in3/4
Toolholder styleRF123..B
