Sandvik Coromant

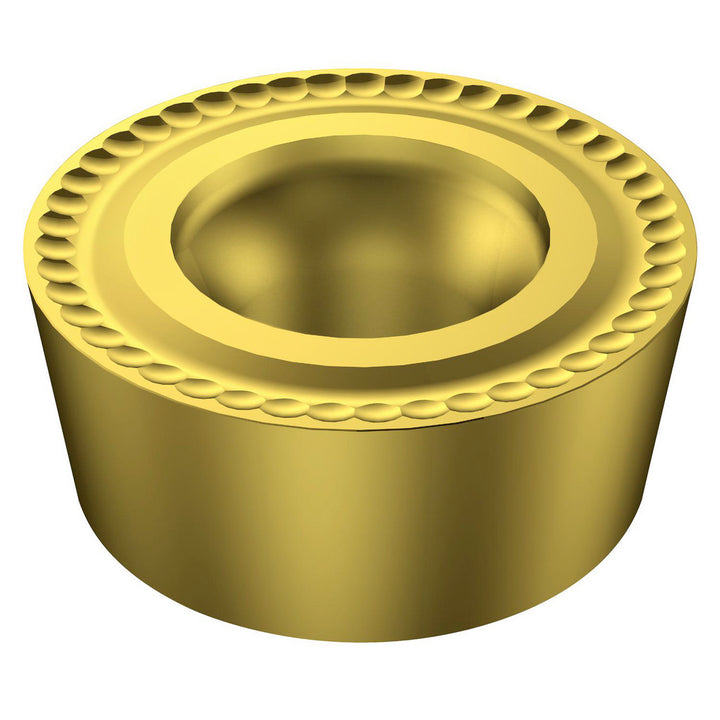

RCMT09T300M02025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5740886
MFR# 5740886ISO/ANSI# RCMT097300Series CoroTurn 107
$13.22List $16.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5740886 is a RCMT09T300M02025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Ansi insert codeRCMT32.5
Ansi size code32.5
Chip breakerM0
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Grade characteristicsStainless Steel (M) - High Wear-Resistance to High Toughness
Hole diameter0.1575
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeR - Round
Insert size code32.5
Insert styleRCMT
Insert thickness in5/32
Iso codeRCMT09T300M02025
Iso insert codeRCMT097300
Iso size code097300
Manufacturers catalog number5740886
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
