Sandvik Coromant

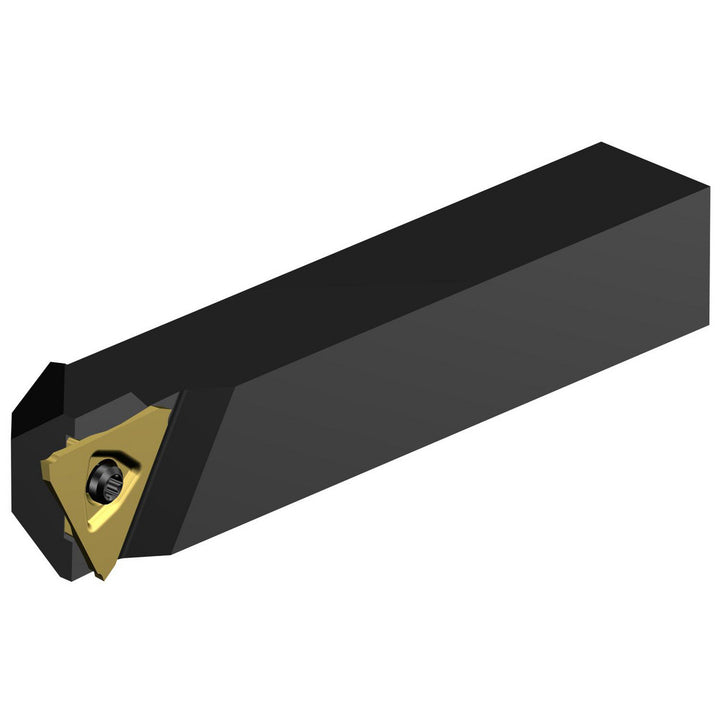

Indexable Grooving - Sandvik Coromant 5740901
MFR# 5740901Cat# RF123T023-12BMSeries CoroCut 3
$191.12List $203.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5740901 indexable grooving. Series CoroCut 3.
Specifications
Back of bar to cutting edge4.5000
Compatible insert size codeN123T3
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderRight Hand
Head height0.7500
Head length0.7500
Insert compatibilityN123T3-0150-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberRF123T023-12BM
Maximum depth of cut0.2520
Maximum groove width0.1250
Maximum overhang in0.9059
Minimum groove width0.0197
Overall length (mm)114.30
Shank height in3/4
Shank length3.5940
Shank width diameter in3/4
Toolholder styleRF123T/U..BM
