Sandvik Coromant
RG123H1-0300-0002-GS1115 Solid Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5741218
MFR# 5741218ISO/ANSI# RG123H1-0300-0002-GS1115Cat# RG123H1-0300-0002-GS1115Series CoroCut 1-2
$57.38List $73.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1115
MaterialSolid Carbide
CoatingTiAlN
Description

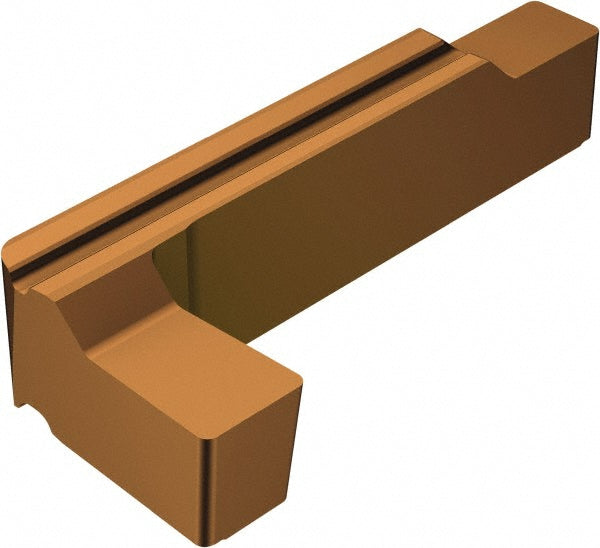

The Sandvik Coromant 5741218 is a RG123H1-0300-0002-GS1115 solid carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting height0.1713
Cutting width0.1181
Insert handRight Hand
Insert materialSolid Carbide
Insert seat sizeHX
Insert sizeHX
Insert styleR/LG123..
Insert thickness0.1713
Iso codeRG123H1-0300-0002-GS1115
Lead angle90
Manufacturers catalog numberRG123H1-0300-0002-GS1115
Manufacturer grade1115
Maximum corner radius0.0098
Maximum depth of cut0.1969
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0059
Multi use toolYes
Overall length1.0059
Overall width0.1181
RakeNeutral
Rake angle7.00
