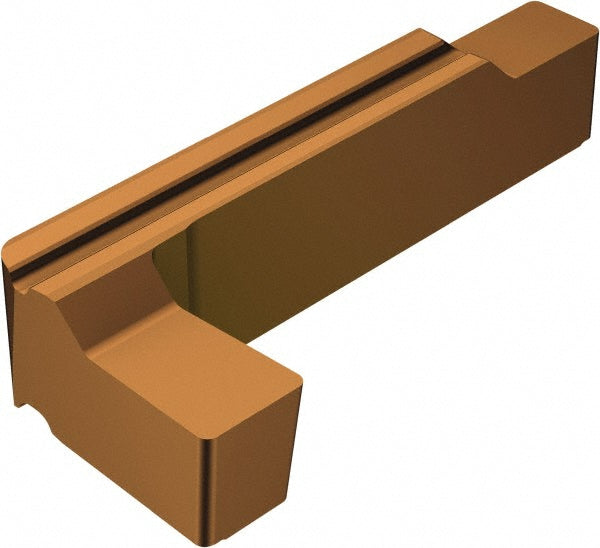

RG123L1-0400-0004-GS1115 Solid Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5741338
MFR# 5741338ISO/ANSI# RG123L1-0400-0004-GS1115Cat# RG123L1-0400-0004-GS1115Series CoroCut 1-2
$96.01List $121.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1115
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5741338 is a RG123L1-0400-0004-GS1115 solid carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.2382
Cutting width0.1575
Insert handRight Hand
Insert materialSolid Carbide
Insert seat sizeLX
Insert sizeLX
Insert styleR/LG123..
Insert thickness0.1713
Iso codeRG123L1-0400-0004-GS1115
Lead angle90
Manufacturers catalog numberRG123L1-0400-0004-GS1115
Manufacturer grade1115
Maximum corner radius0.0177
Maximum depth of cut0.3543
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0138
Multi use toolYes
Overall length1.2165
Overall width0.1575
RakeNeutral
Rake angle7.00
