Sandvik Coromant

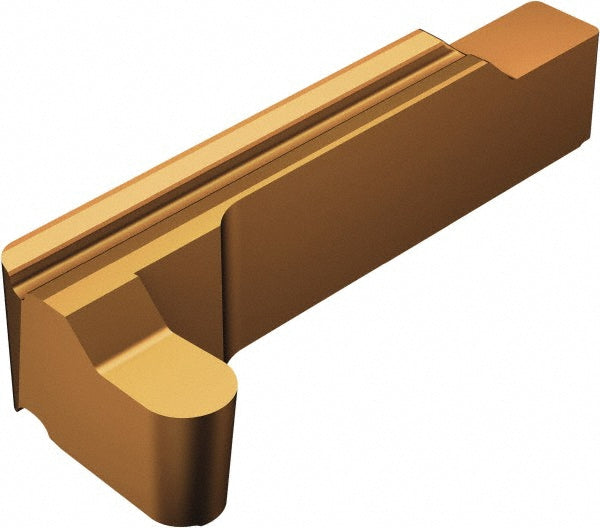

RG123L1-0200-0010-RS1115 Solid Carbide Insert, TiAlN - Sandvik Coromant 5741384
MFR# 5741384ISO/ANSI# RG123L1-0200-0010-RS1115Cat# RG123L1-0200-0010-RS1115Series CoroCut 1-2
$81.86List $104.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5741384 is a RG123L1-0200-0010-RS1115 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRS
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting height0.2382
Cutting width0.0787
Insert handRight Hand
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeX1
Insert styleRG123..
Insert thickness0.2382
Iso codeRG123L1-0200-0010-RS1115
Manufacturers catalog numberRG123L1-0200-0010-RS1115
Maximum depth of cut0.2360
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0394
Multi use toolYes
Overall length1.2170
Overall width0.0790
RakePositive
