Sandvik Coromant

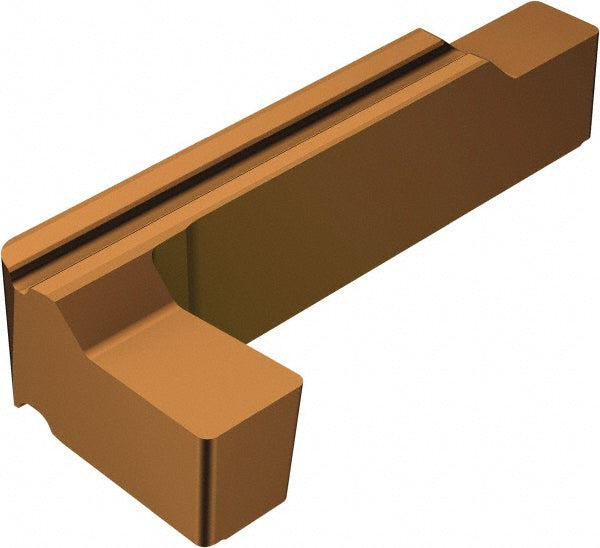

RG123L103000002GS1115 Solid Carbide Insert, Grade GS1115, TiAlN - Sandvik Coromant 5741386
MFR# 5741386ISO/ANSI# RG123L103000002GS1115Series CoroCut 1-2
$96.01List $121.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeGS1115
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5741386 is a RG123L103000002GS1115 solid carbide indexable insert, grade GS1115, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1181
Insert handRight Hand
Insert materialSolid Carbide
Insert seat sizeL
Insert sizeL1
Insert styleRG123
Insert thickness0.1713
Iso codeRG123L103000002GS1115
Manufacturers catalog number5741386
Manufacturer gradeGS1115
Maximum depth of cut0.3543
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Rake angle7.00
