Sandvik Coromant

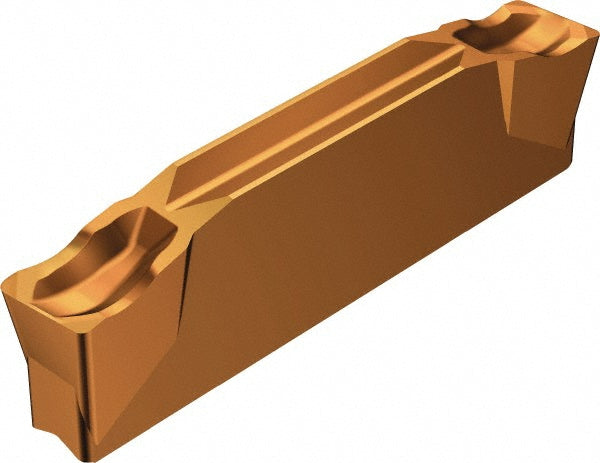

Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5741427
MFR# 5741427Cat# R123H2-0400-0503-CR 1125Series CoroCut 1-2
$44.96List $57.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5741427 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerCR
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleR123x2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR123H2-0400-0503-CR 1125
Manufacturer grade1125
Maximum depth of cut0.9331
Overall length0.9823
Overall width0.1575
Relief angle7.00
