Sandvik Coromant
Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5741444
MFR# 5741444Series CoroCut 1-2
$40.88List $52.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

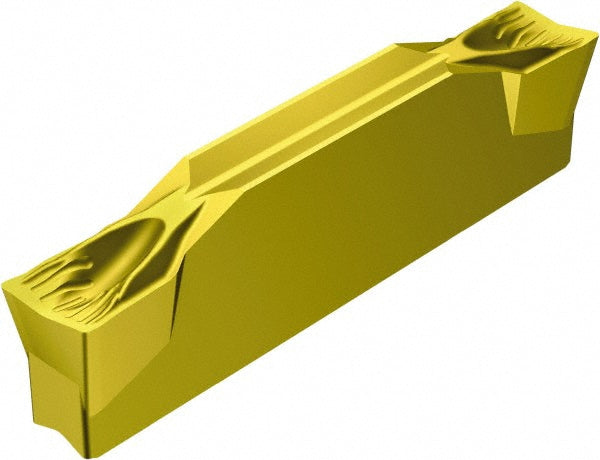

The Sandvik Coromant 5741444 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCF
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0059
Cutting tool applicationGrooving; Parting; Profiling
Cutting width0.1575
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleR123H2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog number5741444
Manufacturer grade2135
Maximum depth of cut0.9961
Relief angle7.00
Width tolerance+0.004/-0 (Inch)
