Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5741472
MFR# 5741472Cat# R123E2-0200-1501-CS 1125Series CoroCut 1-2
$56.26List $70.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5741472 is a solid carbide indexable insert, grade 1125, TiAlN coated.

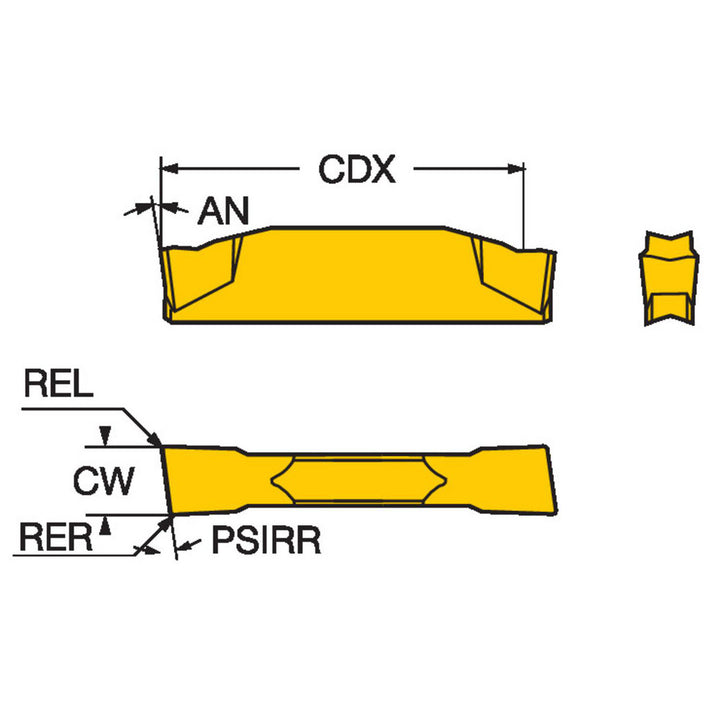

Specifications
ChipbreakerCS
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Cutting width0.0787
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeE
Insert size codeE
Insert styleR123x2
Lead angle15
Lead angle directionRight Hand
Manufacturers catalog numberR123E2-0200-1501-CS 1125
Manufacturer grade1125
Maximum depth of cut0.7638
Overall length0.7913
Overall width0.0787
Relief angle7.00
