Sandvik Coromant
Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5741495
MFR# 5741495Cat# R123G2-0300-0503-CR 1145Series CoroCut 1-2
$53.90List $67.93
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description

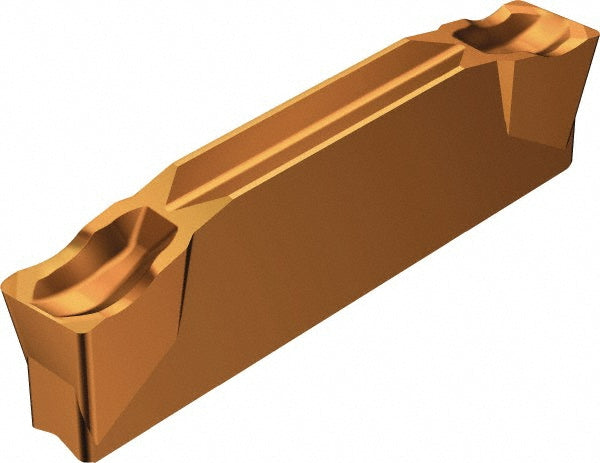

The Sandvik Coromant 5741495 is a solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
ChipbreakerCR
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleR123x2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR123G2-0300-0503-CR 1145
Manufacturer grade1145
Maximum depth of cut0.7402
Overall length0.7831
Overall width0.1181
Relief angle7.00
