Sandvik Coromant

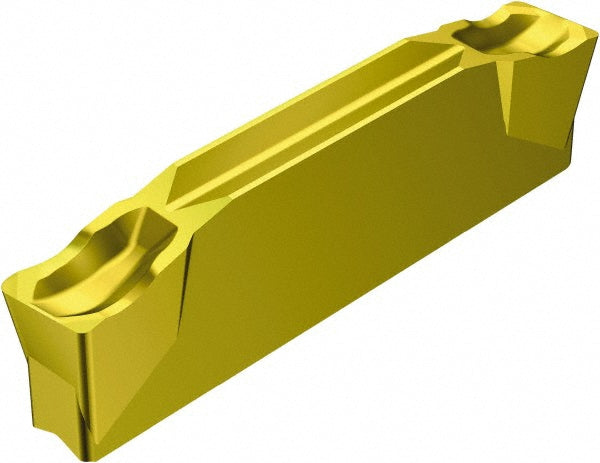

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5741497
MFR# 5741497Cat# R123G2-0300-0503-CR 2135Series CoroCut 1-2
$38.57List $49.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5741497 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCR
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0118
Cutting width0.1181
Full radiusNo
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleR123x2
Lead angle5
Lead angle directionRight Hand
Manufacturers catalog numberR123G2-0300-0503-CR 2135
Manufacturer grade2135
Maximum depth of cut0.7402
Overall length0.7839
Overall width0.1181
Relief angle7.00
