Sandvik Coromant

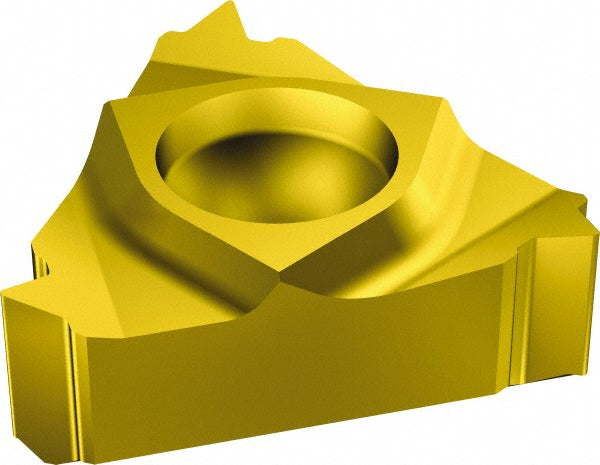

1/4" IC Solid Carbide Insert, Grade 1020, TiN - Sandvik Coromant 5742011
MFR# 5742011Cat# R166.0L-11NT01F140 1020Series T-Max U-Lock
$42.85List $54.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
Grade1020
MaterialSolid Carbide
CoatingTiN
Description
The Sandvik Coromant 5742011 is a solid carbide indexable insert, grade 1020, TiN coated.
Specifications
ChipbreakerF
Coating finishTiN
Coating processPVD
Hole diameter0.0937
Included angle60
Inscribed circle in1/4
Insert handRight Hand
Insert materialSolid Carbide
Insert size code11
Insert style166
Manufacturers catalog numberR166.0L-11NT01F140 1020
Manufacturer grade1020
Number of teeth per side1
Thickness in1/8
Threads per inch14
Thread standardNPT
Thread typeInternal
