Indexable Threading Toolholders - Sandvik Coromant 5742014

Sandvik Coromant

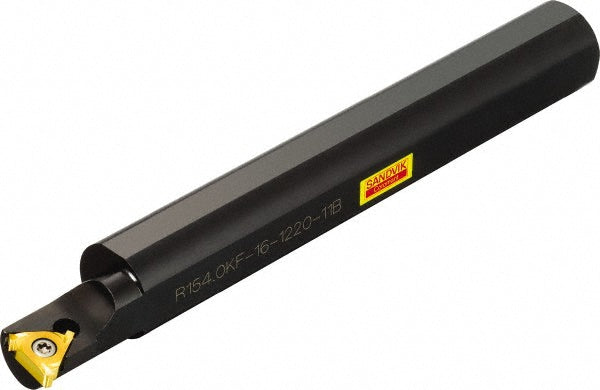

Indexable Threading Toolholders - Sandvik Coromant 5742014

MFR# 5742014Series T-Max U-Lock 166

$265.34List $281.88 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Sandvik Coromant 5742014 indexable threading toolholders. Series T-Max U-Lock 166.

Specifications

Center to cutting edge0.4130
Coolant throughNo
Cutting tool applicationThreading
Hand of holderRight Hand
Head length1.0300
Insert compatibilityR166.0L to 11MM01 to 050; R166.0L to 11MM01 to 100; R166.0L to 11MM01 to 150; R166.0L to 11MM01 to 200; R166.0L to 11NT01F140; R166.0L to 11NT01F180; R166.0L to 11UN01 to 140; R166.0L to 11UN01 to 160; R166.0L to 11UN01 to 180; R166.0L to 11UN01 to 200; R
Insert holding methodScrew
Insert inscribed circle in1/4
Maximum depth of cut1.8750
Minimum bore diameter0.6300
Multi use toolYes
Neck diameter0.6250
Overall length in6
Pitch range32 to 12
Shank height0.5630
Shank length5.1669
Shank width diameter in5/8
Thread typeInternal
Toolholder materialSteel
Toolholder styleR166.0L
