R166.39G-24RD13-080 4125 Carbide Insert, Grade 4125, TiAlN - Sandvik Coromant 5742303

Sandvik Coromant

R166.39G-24RD13-080 4125 Carbide Insert, Grade 4125, TiAlN - Sandvik Coromant 5742303

MFR# 5742303ISO/ANSI# R166.39G-24RD13-080 4125Series T-Max Twin-Lock

$114.84List $144.72 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Grade4125
MaterialCarbide
CoatingTiAlN

Description

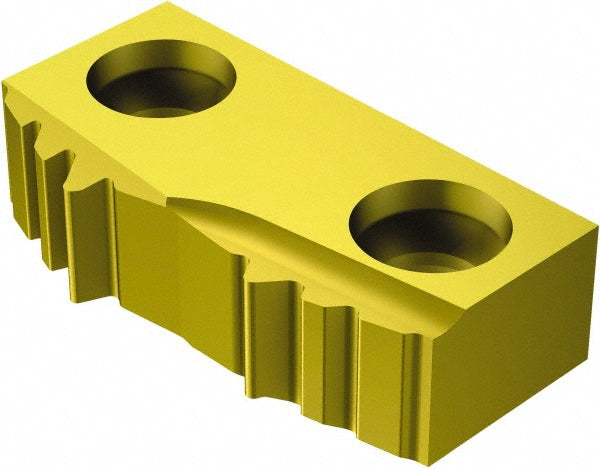

The Sandvik Coromant 5742303 is a R166.39G-24RD13-080 4125 carbide indexable insert, grade 4125, TiAlN coated.

Specifications

Coating finishTiAlN
Coating processPVD
External pitch8 TPI
Finish coatingTiAlN/TiN
Included angle60degree
Insert handRight Hand
Insert materialCarbide
Insert size24
Insert styleR166.39G..RD (M)
Iso codeR166.39G-24RD13-080 4125
Manufacturer grade4125
Thickness in1/4in
Thread standardUN
Thread typeExternal
Tip to top of insert0.2500
