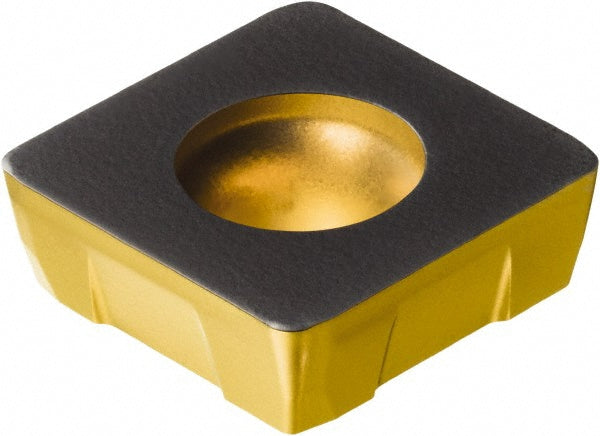

R210-09 04 12M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5742608

Sandvik Coromant

R210-09 04 12M-PM 4220 Solid Carbide Insert, Grade 4220, TiCN - Sandvik Coromant 5742608

MFR# 5742608ISO/ANSI# R210-09 04 12M-PM 4220Cat# R210-09 04 12M-PM 4220Series R210

$19.03List $24.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade4220
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5742608 is a R210-09 04 12M-PM 4220 solid carbide indexable insert, grade 4220, TiCN coated. Suited for steel, cast iron, hard material.

Specifications

Ansi codeR210-09 04 12M-PM 4220
Chip breakerPM
Coating finishTiCN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3701
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090412
Insert styleR210
Iso codeR210-09 04 12M-PM 4220
Length0.3701
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 12M-PM 4220
Manufacturer grade4220
Material applicationSteel; Cast Iron; Hard Material
Material gradeP20; H25
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Hard Material
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width0.3701
