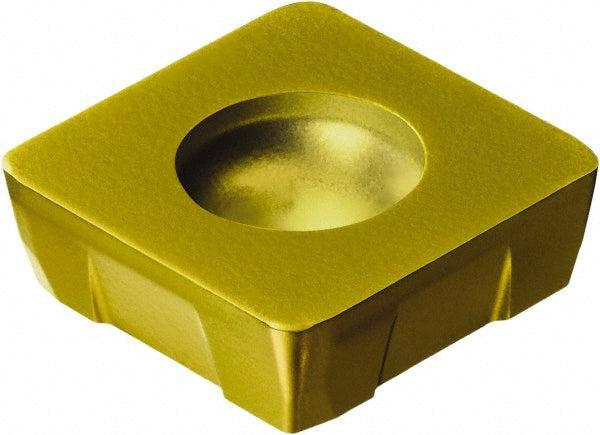

R210-14 05 12M-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5742708
MFR# 5742708ISO/ANSI# R210-14 05 12M-MM 2040Cat# R210-14 05 12M-MM 2040Series R210
$25.22List $32.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
Grade2040
MaterialSolid Carbide
CoatingTiCrN
Description
The Sandvik Coromant 5742708 is a R210-14 05 12M-MM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeR210-14 05 12M-MM 2040
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Corner radius0.0394
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.2244
Included angle degree90
Inscribed circle0.5709
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140512
Insert styleR210
Iso codeR210-14 05 12M-MM 2040
Length0.5709
Length range0.5000 to 0.6000
Manufacturers catalog numberR210-14 05 12M-MM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.0787
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5709
