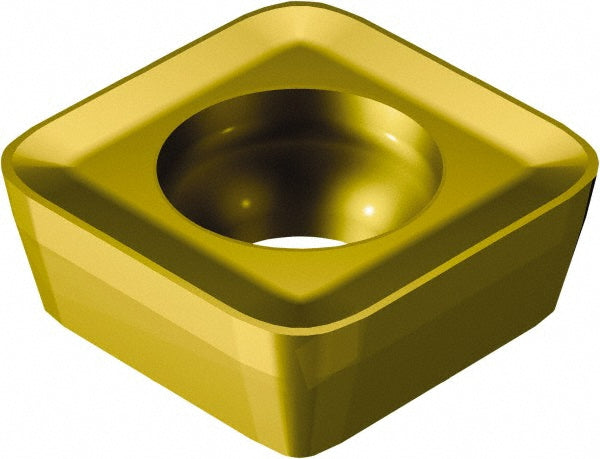

R210-09 04 14E-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5742729

Sandvik Coromant

R210-09 04 14E-MM 2040 Solid Carbide Insert, Grade 2040, TiCrN - Sandvik Coromant 5742729

MFR# 5742729ISO/ANSI# R210-09 04 14E-MM 2040Cat# R210-09 04 14E-MM 2040Series R210

$32.69List $41.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
Grade2040
MaterialSolid Carbide
CoatingTiCrN

Description

The Sandvik Coromant 5742729 is a R210-09 04 14E-MM 2040 solid carbide indexable insert, grade 2040, TiCrN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR210-09 04 14E-MM 2040
Chip breakerMM
Coating finishTiCrN
Coating processCVD
Corner radius0.0551
Cutter series compatibilityR210
Cutting edge styleCorner Rounded
Hole diameter0.1654
Included angle degree90
Inscribed circle0.3740
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090414
Insert styleR210
Iso codeR210-09 04 14E-MM 2040
Length0.3740
Length range0.3200 to 0.4000
Manufacturers catalog numberR210-09 04 14E-MM 2040
Manufacturer grade2040
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M40; S30
Maximum depth of cut0.0472
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle10
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3740
