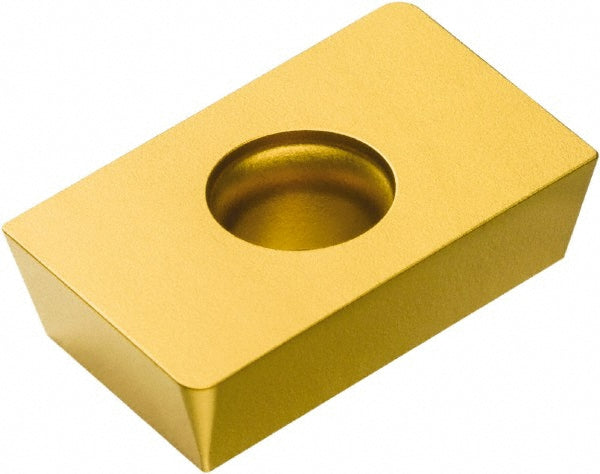

R216.2-17 03 08-1 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5742785

Sandvik Coromant

R216.2-17 03 08-1 235 Solid Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5742785

MFR# 5742785ISO/ANSI# R216.2-17 03 08-1 235Cat# R216.2-17 03 08-1 235Series R216.2

$47.49List $60.91 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeRectangle
Grade235
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5742785 is a R216.2-17 03 08-1 235 solid carbide indexable insert, grade 235, TiCN coated. Suited for steel, stainless steel.

Specifications

Ansi codeR216.2-17 03 08-1 235
Chip breakerFlat Top
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR216.2
Cutting edge styleCorner Rounded
Hole diameter0.1575
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size17
Insert size code1703081
Insert styleR216.2
Iso codeR216.2-17 03 08-1 235
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberR216.2-17 03 08-1 235
Manufacturer grade235
Material applicationSteel; Stainless Steel
Maximum depth of cut0.5906
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
